Schertler: JAM X

JAM X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this flagship 5-channel amp provides 240W (115dB SPL) of bi-amplified analog power.

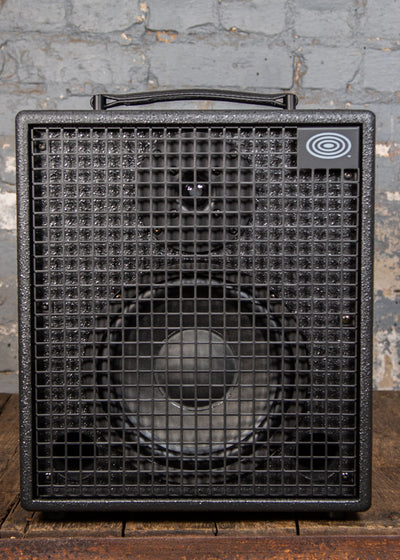

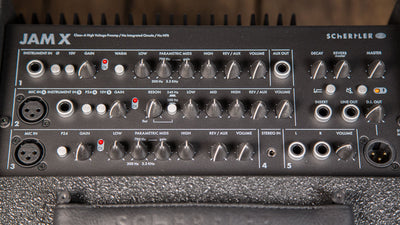

JAM X is equipped with a 1” dome tweeter and 8” woofer. It is designed with an optimized 2-way bass reflex construction. JAM X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.

Schertler amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback

Specifications:

• Weight: 12.5kg
• Dimensions (LxDxH): 32.4 x 29.7 x 38 cm
• Frequency Response: (@ +/-3dB): 40 to 20 kHz
• Sensitivity: (1W/1m) @1kHz: 95dB
• Power: 240W Pure analog power
• SPL Max: 117dB
• Speakers: 1” dome tweeter, 8” woofer
• System - Format: Bass reflex - two way - Bi-amp
• Mic In connector: XLR
• Mic In sensitivity: -52 dB
• Mic In impedance: 4.7 kΩ
• Instrument in connector: 1/4” jack unbalanced
• Instrument in sensitivity: -47 dB
• Instrument in impedance: 820 kΩ
• Stereo In connector: 1/8” jack stereo
• Stereo In sensitivity: -10 dBu
• Stereo In impedance: 40 kΩ
• Insert: On master
• Line Out connector: 1/4” jack
• Line Out level: 0 dBu
• Line Out impedance: 200 Ω
• DI Out connector: XLR
• DI Out level: -∞ to +6 dBu
• DI Out impedance: 180 Ω
• Aux Out level: 0 dBu
• Aux Out impedance 200 Ω
• Phones connector: n.a.
• Phones level: n.a.
• Phones impedance: n.a.
• Phantom Power (nominal): 48 VDC (XLR) / 10 VBC (jack)
• Effect: Spring-type digital reverb with decay
• Preamp: Class-A, no negative feedback, no integrated circuits
• Footswitch: n.a.
• Stand mounting: Flange mount 36mm, h=102 mm
• Available versions: Dark wood and anthracite
